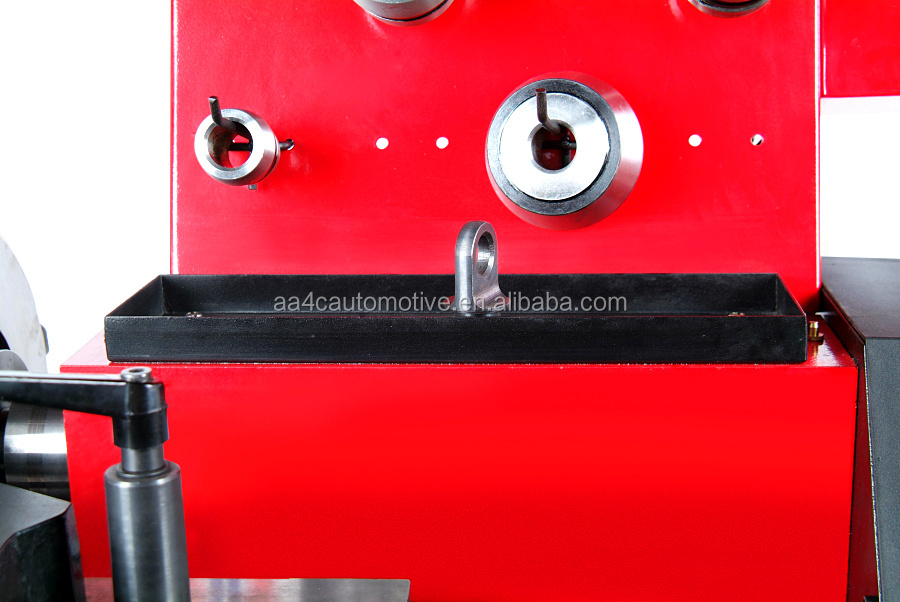

AA4C brake disc lathe machine C9372 brake skimming machine

User manual :C9372 User manual.pdf

Explosive drawing :C9372 Explosive Drawing.pdf

Quickly,accurately and efficiently to cutting rotor;fast and slow setting allow cutting rotor
Quickly, accurately and efficiently to cutting drum;Finitely adjustably setting allow cutting drum
Three kinds of speed to choice for spindle speed
A convenient design allows to quickly change from rotor to drum,with cross feed extention plate will be increase the maximum rotor diameter to 22"/ 588mm.
Position of stop make the lathe stop automatic after the cutting
Fully equipped adapter package

SPECIFICATION:

Spindle Travel 9.875" / 251mm
Spindle Speed 70,80, 118 RPM
Spindle Feed Speed Min 0.002 Inch Per Revolution / 0.05 mm/Rev
Max 0.02 Inch Per Revolution / 0.5 mm/Rev
Cross Feed Speed Min 0.002 Inch Per Revolution / 0.05 mm/Rev
Max 0.01 Inch Per Revolution / 0.25 mm/Rev
Handwheel Graduations 0.002" / 0.05mm
Rotor Diameter 7" / 180mm - 18" / 457mm
Rotor Thickness 4" / 102mm
Drum Diameter 6" / 152mm 28 / 711mm
Drum Depth 9.875" / 251mm
Motor 1PH 220VAC 50/60Hz 3PH 380VAC 50/60Hz
Gross Weight 400KG
Dimension 1200X920X1140mm

Here are some key selling points of a brake lathe machine:

1. Increased Efficiency and Productivity:

   • Brake lathes allow mechanics to accurately turn and resurface brake rotors and drums on-vehicle. This saves time compared to having to remove and disassemble the brakes.
   • The automated, precision machining capabilities of a brake lathe result in faster brake jobs and reduced labor costs.

2. Improved Brake Performance:

   • Properly machining brake rotors and drums helps restore the brakes to OEM specifications, ensuring optimal braking performance and safety.
   • Resurfacing worn components extends their usable life, reducing the need for premature and costly brake part replacements.

3. Versatility and Compatibility:

   • Many brake lathes can handle a wide variety of vehicle models and brake sizes, making them a flexible tool for workshops.
   • Adaptable mounting systems allow the lathe to work on both on-car and off-car applications.

4. Ease of Use:

   • Modern brake lathes have user-friendly controls and automatic features that simplify the resurfacing process.
   • The ability to monitor and adjust cutting depth, speed, and other parameters helps ensure a quality finish.

5. Durability and Reliability:

   • Brake lathes are built to withstand the rigors of frequent, heavy-duty use in a workshop environment.
   • Quality models have a long service life and require minimal maintenance.

In summary, a brake lathe machine can improve workshop efficiency, brake performance, and profitability, making it a valuable investment for automotive repair facilities.
